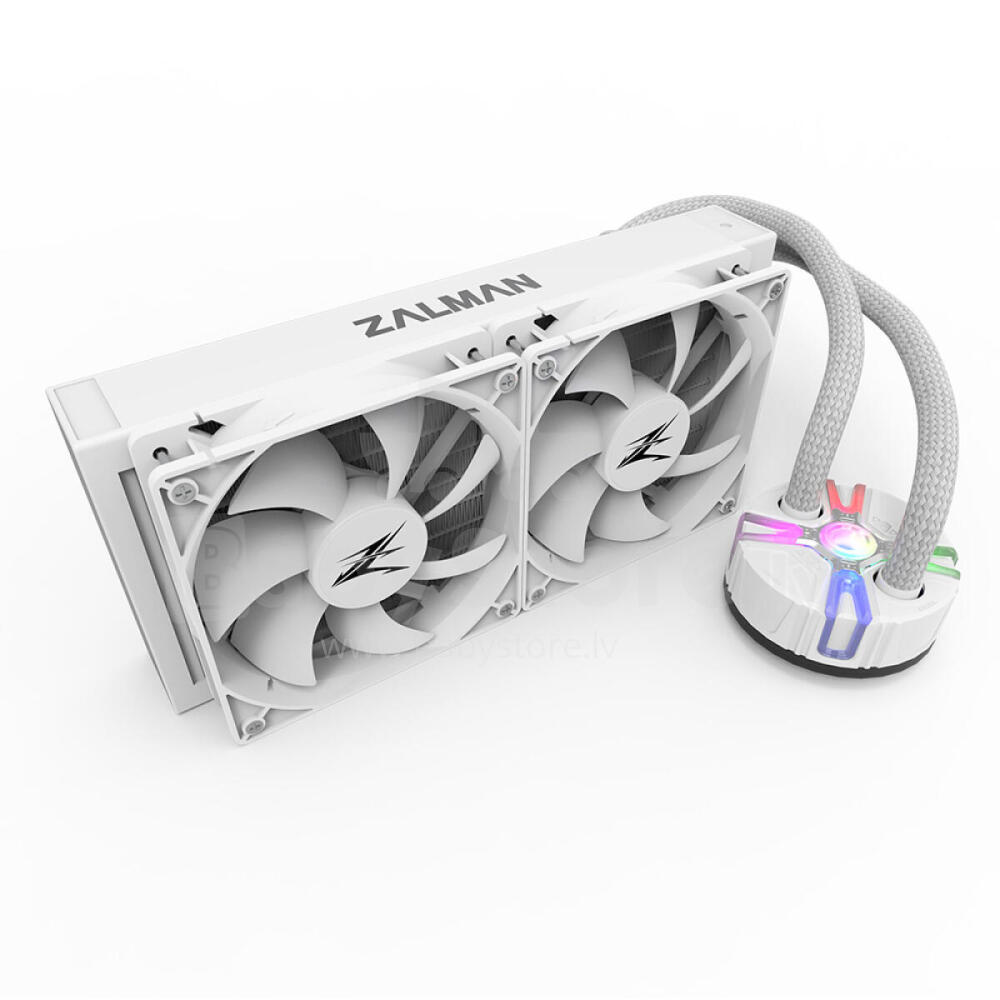

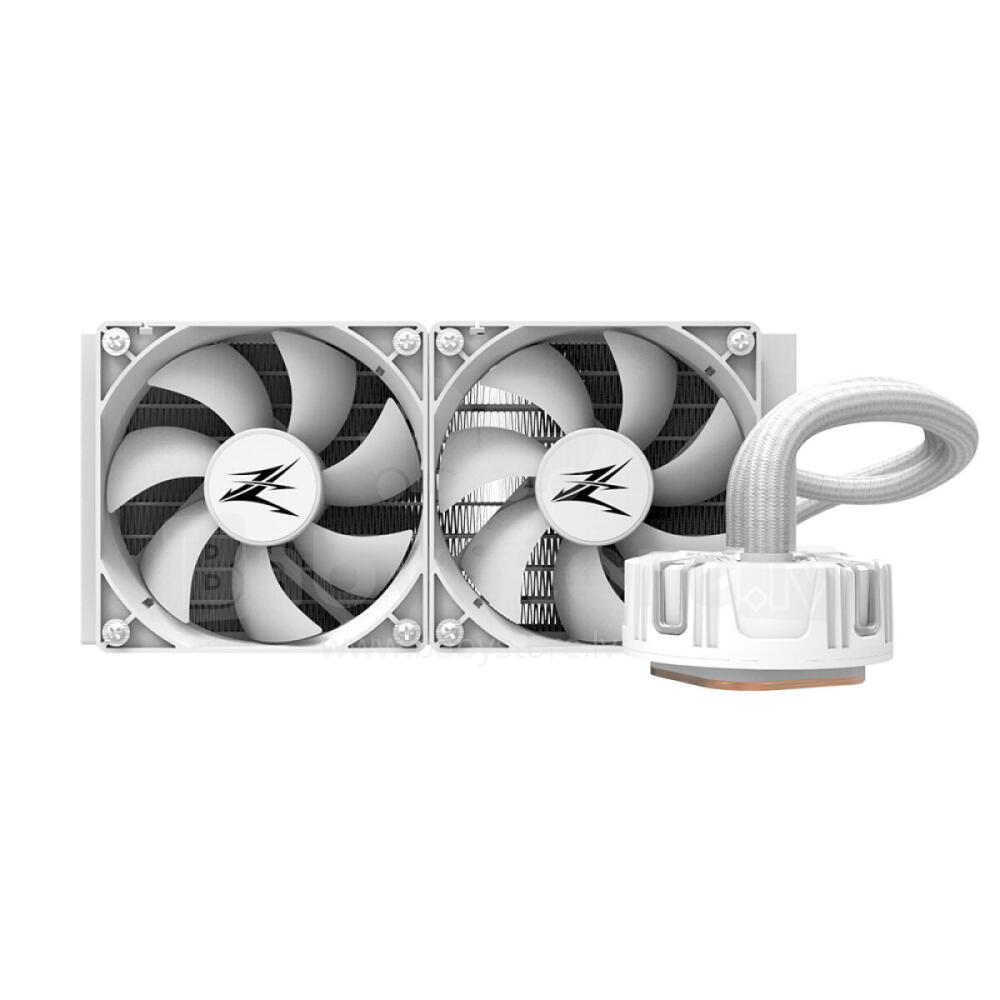

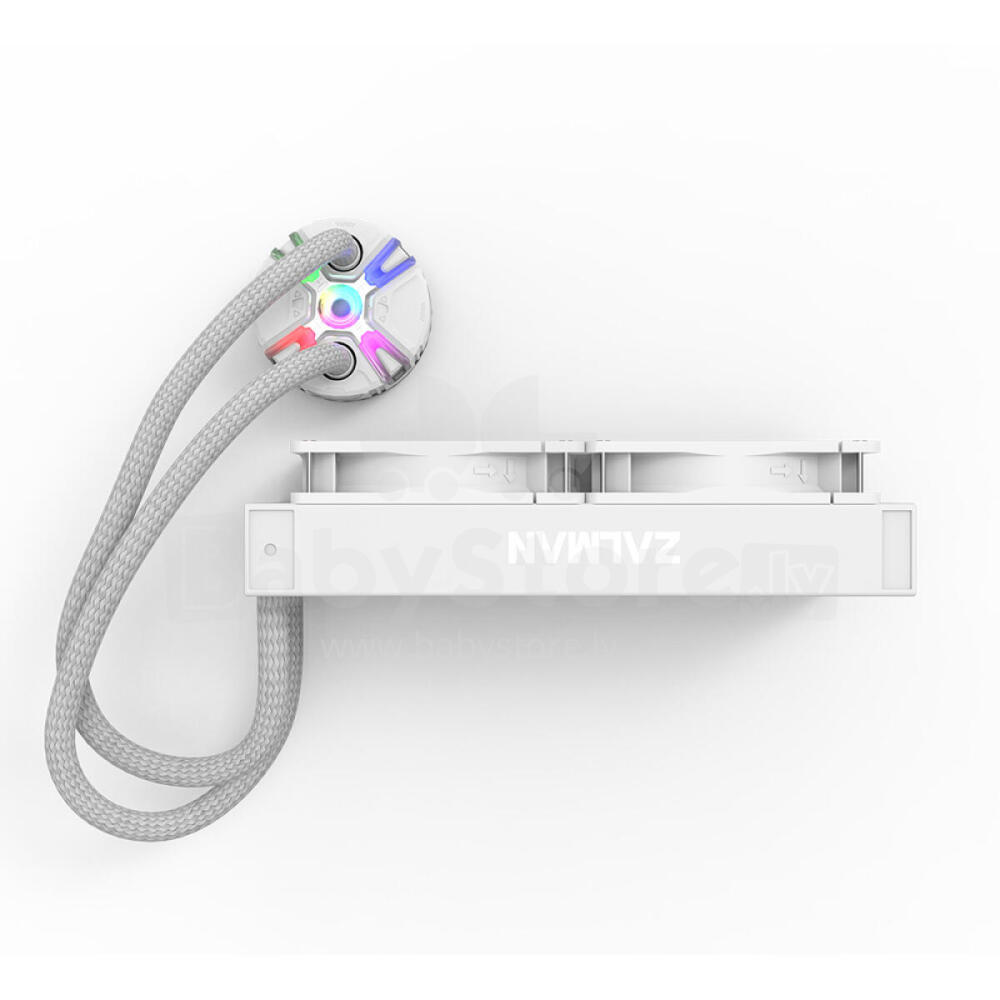

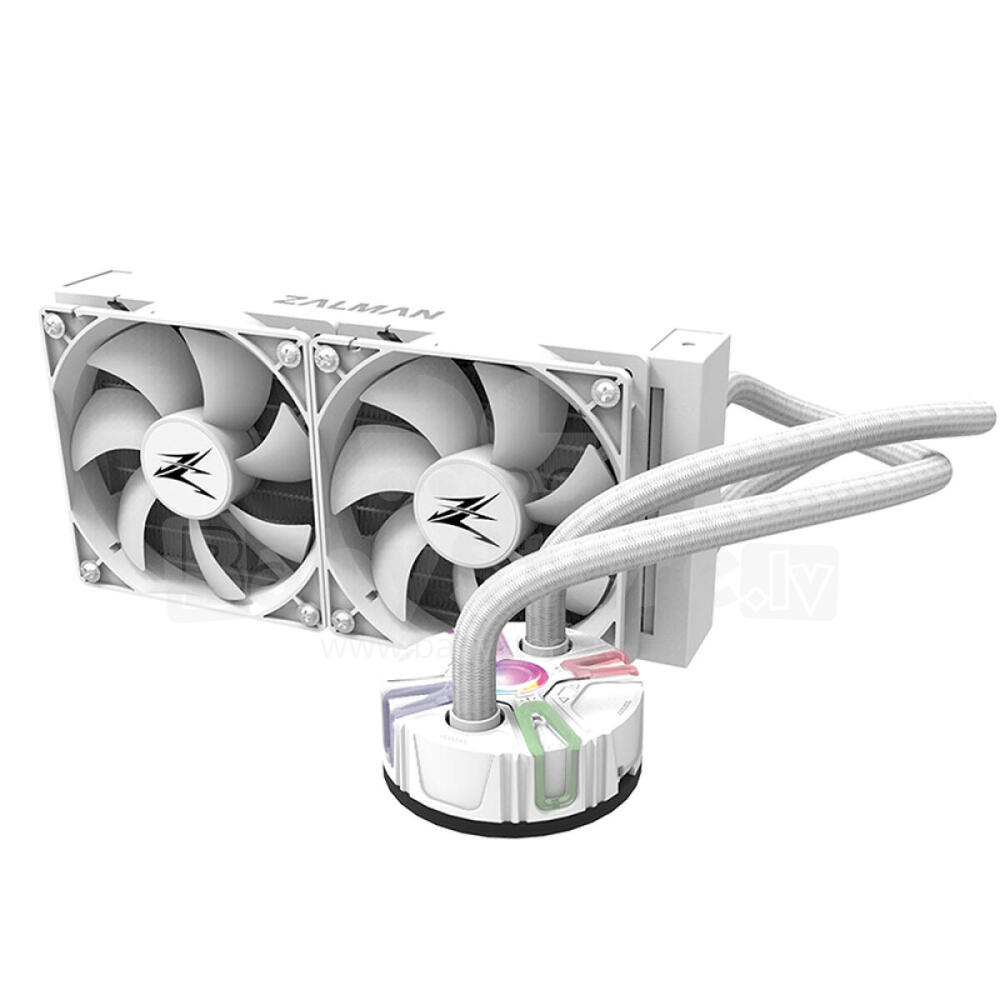

| Model | Reserator5 Z24 (White) |
| Pump ▼ | ---------------------------------------- |
| Dimensions | 82(L) x 82(W) x 40(H)mm |
| Materials | PPS, PC, Pure Copper, Pure Aluminum |
| Speed | 1,000~2,100RPM |
| Bearing Type | Ceramic Bearing |
| Water Flow | Min. 0.7L/min Max. 0.85L/min |
| Rated Voltage | 12V |
| Rated Current | 0.35A |
| Power Consumption | 4.2W |
| Radiator ▼ | ---------------------------------------- |

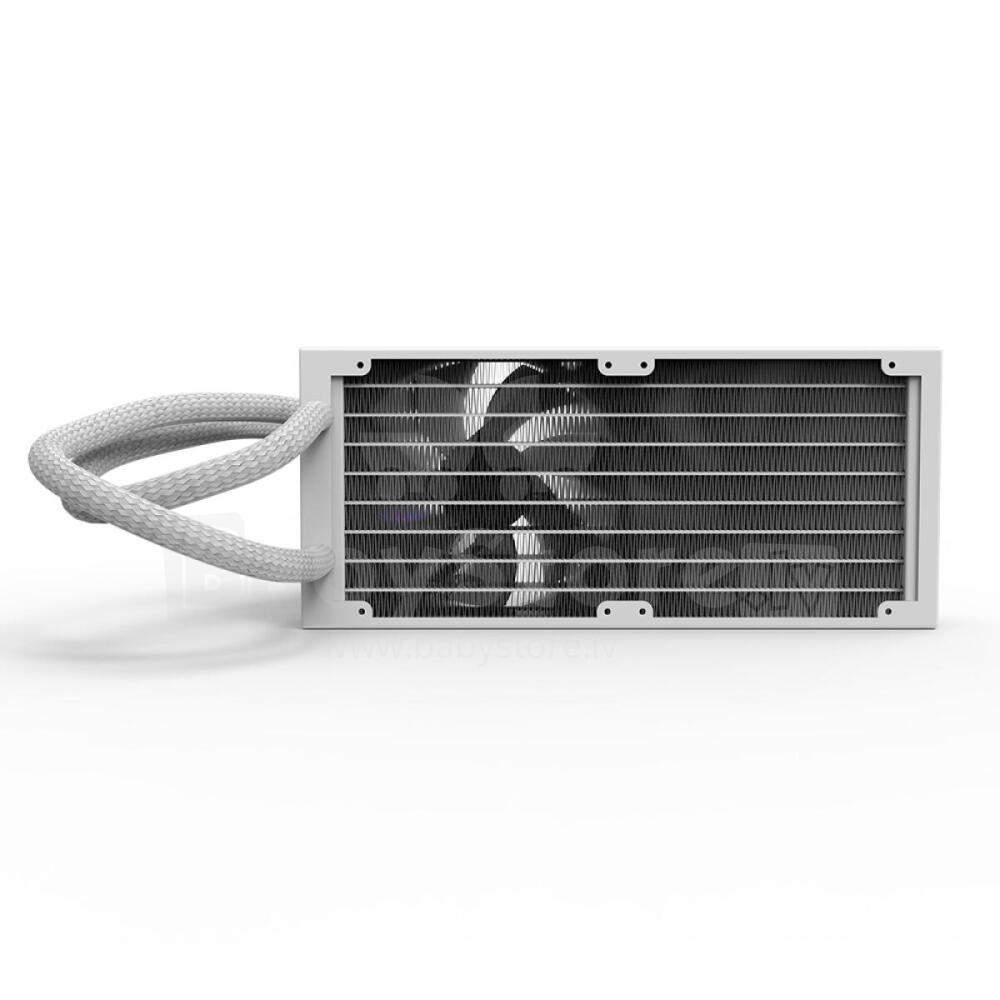

| Dimensions | 120 x 278 x 27(H)mm |
| Materials | Pure Aluminum |
| Fan ▼ | ---------------------------------------- |
| Dimensions | 120mm |
| Bearing Type | EBR Bearing |
| Speed | 800~2,000RPM |
| Max.Noise Level | 37dB(A) |
| Max. Air Pressure | 2.92mmH O |
| Life Span | 50,000hours |
| Connector Type | 4Pin |
| Control Method | PWM Control |
| Rated Voltage | 12V |
| Rated Current | 0.35A |
| Power Consumption | 4.2W |
| Thermal Compound | ZM-STC8 |
| Socket Compatibility | Intel : LGA1700/1200/115X/2011/2011-V3/2066 |
| AMD : AM4/AM3+/AM3/FM2+/FM2 |
